| 产品特性：绝缘性能优 | 是否进口：否 | 产地：nitto |
| 加工定制：是 | 长期耐温性：130 | 短期耐温性：180 |
| 厚度：0.054mm | 基材：PET | 宽度：任意宽度均可订做 |
| 品牌：nitto | 适用范围：电器绝缘用 | 颜色：黄黑白 |
以mm宽度计价，定长50M，拍下请注明颜色。黄、黑、白
***的库存是大料，一旦按您的要求裁切，就不方便退货的哟。
任意宽度均可裁切，金额不足￥1000需增加5mm上机修边损耗费￥10。
默认中通快递、优速，快递费以实际产生的为主。
深圳市君达电子有限公司
0755-86173511
13923720372
13691895131

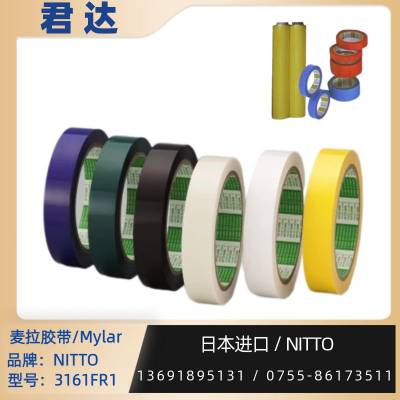

NITTO
No. 3161FR1
Flame-Retardant Polyester Adhesive Tape
No. 3161FR1 is a flame retardant polyester acrylic tape that is mostly used for electrical
insulation and with power transformers. This tape product is ideal for use in the electrical
power markets.
Features
z Offers Superior electrical insulation
z Offers superior flame-retardant.
z Offers superior heat resistance.
z Contains no PBB and PBDE, which are the target of the regulation of RoHS.
z Compares to Permacel&＃39;s discontinued P-286 & P-286E.
Product Construction
Adhesive Layer
Polyester Film with release treatment
Properties
Backing Polyester Film
Adhesive Flame-Retardant Acrylic (UL-510)
Colors Milky, White, Yellow, Red, Green, Blue, Black
Imperial Metric
Total Tape Thickness 2.12 mils 0.054 mm
Elongation 125% 125%
Dielectric Strength 8,900 volts 8.9 kV
