NITTO

P-50

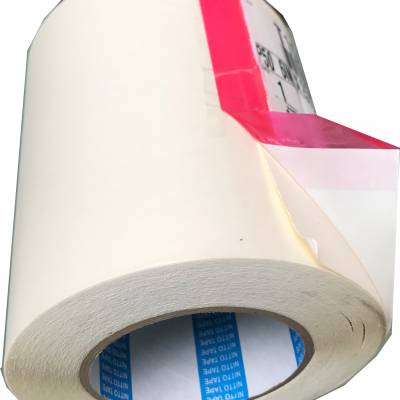

MULTI-PURPOSE DOUBLE-COATED CLOTH TAPE
PRODUCT DESCRIPTION
P-50 is a heavy duty conformable double-coated cloth tape designed for honeycomb milling, industrial
holding, mounting and carpet installation.
FEATURES
? Combines a heavy high-tack adhesive on both sides with an extremely durable cloth backing to provide
excellent strength and superior conformability for various applications.
? Ideal for applications on rough & irregular surfaces, unfinished wood and concrete flooring.
? Is not affected by commonly used oils in milling applications and will remove cleanly.
PRODUCT CONSTRUCTION
RUBBER RESIN
COTTON CLOTH
RUBBER RESIN
LINER
APPLICATION
? Heavy-duty, highly conformable tape for carpet installation applications.
? Suitable for industrial holding and mounting printing plates, printing cylinders and honeycomb milling.
? Suited for cushioning metal, glass and various smooth surfaces against vibrations.
PROPERTIES, CERTIFICATIONS AND SPECIFICATIONS
Carrier Material Cotton Cloth
Adhesive Rubber Resin
Color White
Imperial Metric
Total Tape Thickness w/o Liner 13 mil 0.330 mm
Total Tape Thickness w/ Liner 17 mil 0.432 mm
Tensile Strength 42 lb/in 73.5 N/10 mm
Elongation 4.5% 4.5%
Adhesion to Steel 95 oz/in 10.35 N/10 mm
Boeing Specifications BAC 5034 Type IV/ BAC 5317/ BAC 5578/ BAC 5657
*CAUTION: The above are typical values and should not be used in writing specifications. Customer is responsible to ensure product
meets intended application requirements before approved for use.
