| 产品特性：测试 | 是否进口：否 | 产地：美国 |
| 品牌：Intertape | 系列：51595 | 加工定制：是 |
| 适用范围：隔离绝缘 | 长度：66M | 厚度：0.114mm |
| 型号：51595 |
周1~5正常上班时间8:00~16:00内付款，均可当天出货.
深圳市君达电子有限公司
0755-86173511 13691895131 13923720372

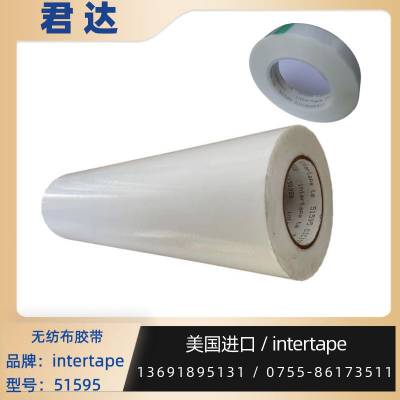

IPG#51595胶带
Intertape polymer group
POLYESTER FILM / POLYESTER NON-WOVEN ELECTRICAL TAPE
Description
The combination of Polyester Film and Polyester Non-Woven Materials can be used in a wide variety of electrical applications. Acrylic adhesive system combination of tear and puncture resistance, high tensile strength with elongation, and excellent dielectric strength.
PRODUCT APPLICATIONS
Ideal for high volume coil wrapping applications, ground and barrier insulation, outer protective wrap for bobbin applications, coil end insulation anchoring leads and terminal boards.
NOMINAL VALUES
The following data are nominal values based on PSTC, ASTM and other standard test. The data should not be considered as specifications.
Backing Thickness: 3.5mil (0.089mm)
Adhesive: Acrylic
Color: white
Total Thickness: 4.5mil (0.114mm)
Dielectric Strength ? : 5000 Volts
Temp. Class ? :155 C / F
Insulation Resistance ? :10 5 megohms
Tensile Strength: 30 lbs/in (52 N/cm)
Adhesion to Steel :50 oz/in (5.5 N/cm)
Elongation : 30%
Electrolytic Corrosion :1.0 Direct/ A, 1*
Flammability :BU 2*
Storage Stability : Excellent
Solvent Resistance: Excellent
Moisture Resistance : Excellent
UL File # : E20780
CSA File #: LR94980
VDE 0340
